Product Description

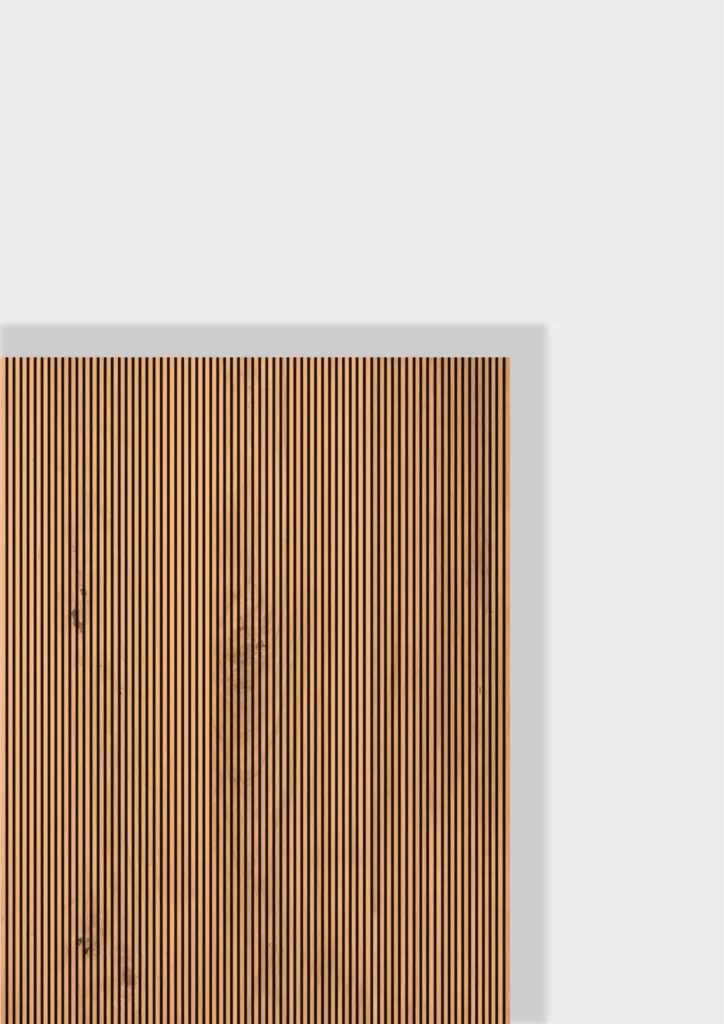

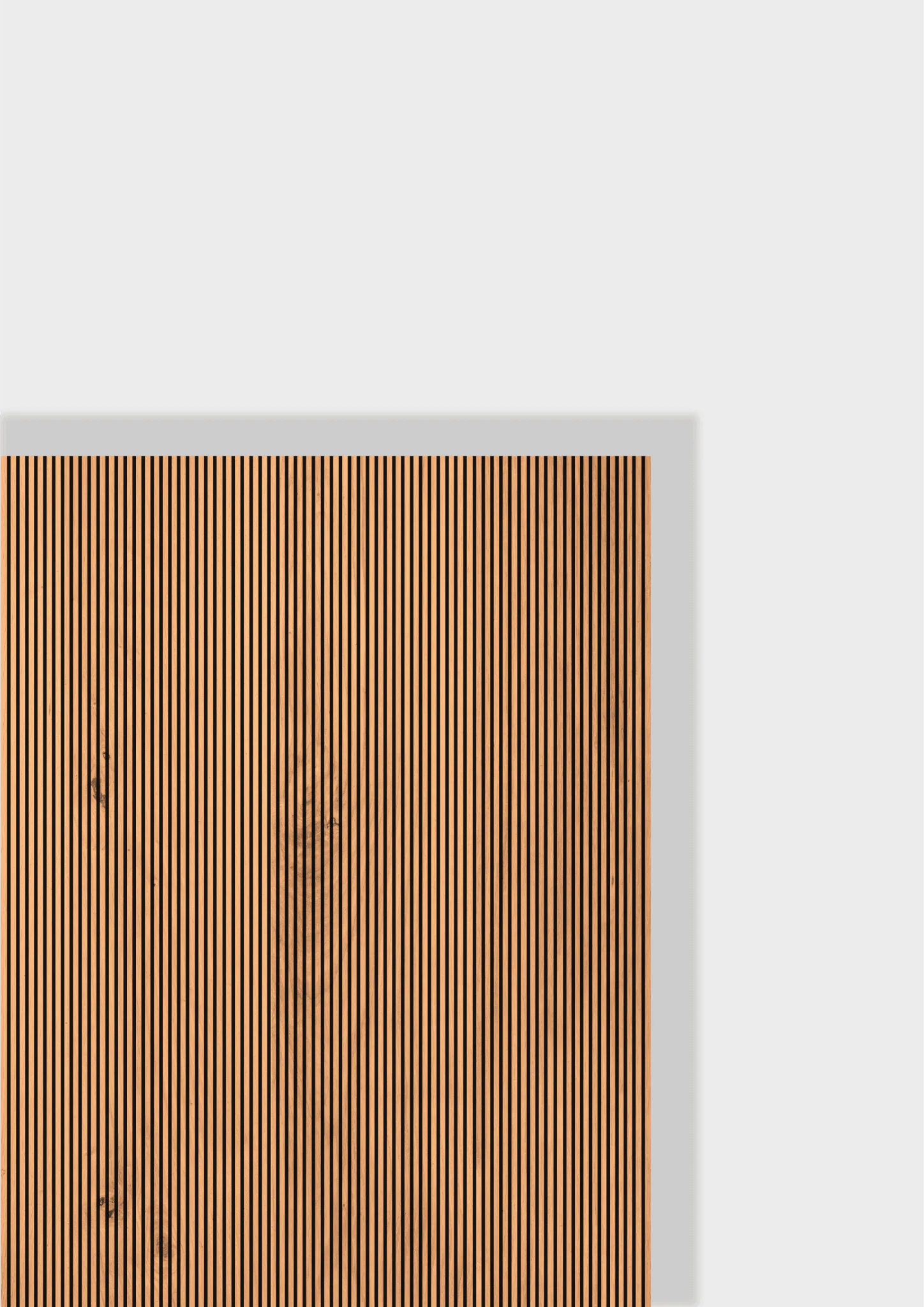

AKÇEwood brand reflective panels are slotted and identified with the code AKÇE112. Our product is designed to prevent sound waves with variable frequencies from reflecting off the wall surface. It is made from 18 mm MDF Laminate / Coated material. The front surface of the panel features slot lines with a solid distance of 12 mm, a depth of 6 mm, and a width of 4 mm. The back surface of the panel is flat. For wall mounting, a supporting construction is created using 40x40x2 mm box profiles, fixed vertically or horizontally with intervals of 600 mm. Wooden frames are mounted on the construction using a level and string. Stone wool with a density of 50 kg/m³ is placed between the wooden frames. The installation of the panels can be done using lamps, dovetail systems, or omega connection profiles. Regarding the ceiling panel, during the frame application, the elevation of the application area is measured using a laser or hose level. L-shaped corner profiles are mounted on the elevation. 3600 mm long T15/T24 main carriers are suspended from the ceiling at a maximum distance of 600 mm from the starting wall using steel anchors, suspension wire, and double spring clips. The distance between the attachment points of the suspension wires to the main carriers should be a maximum of 1200 mm. The second main carrier is hung at a distance of 1200 mm from the first one using the same system. 1200 mm-long secondary carriers are connected at a 90-degree angle to the main carriers. Then, 600x1200 mm rectangular spaces are formed on the ceiling using the 600 mm secondary carriers, and the panels are placed in these spaces.
Technical Specifications
- Brand: AKÇEwood
- Product Type: Reflective Panels
- Material: 18 mm MDF Laminate / Coated
- Surface Feature: Slotted
- Slot Gap Distance: 4 mm
- Slot Depth: 6 mm
- Slot Width: 4 mm
- Mounting Profile: 40x40x2 mm Box Profile
- Carrier Construction: Vertically or Horizontally at 600mm intervals
- Wooden Framework: 3600 mm T15/T24 main carriers
- Installation Method: Clip and Nail System, Adhesive
- Framework Installation: L corner profile is mounted, main carriers are suspended
- Ceiling Partitioning: Rectangles of 600x1200 mm are divided into squares of 600x600 mm, panels are placed
