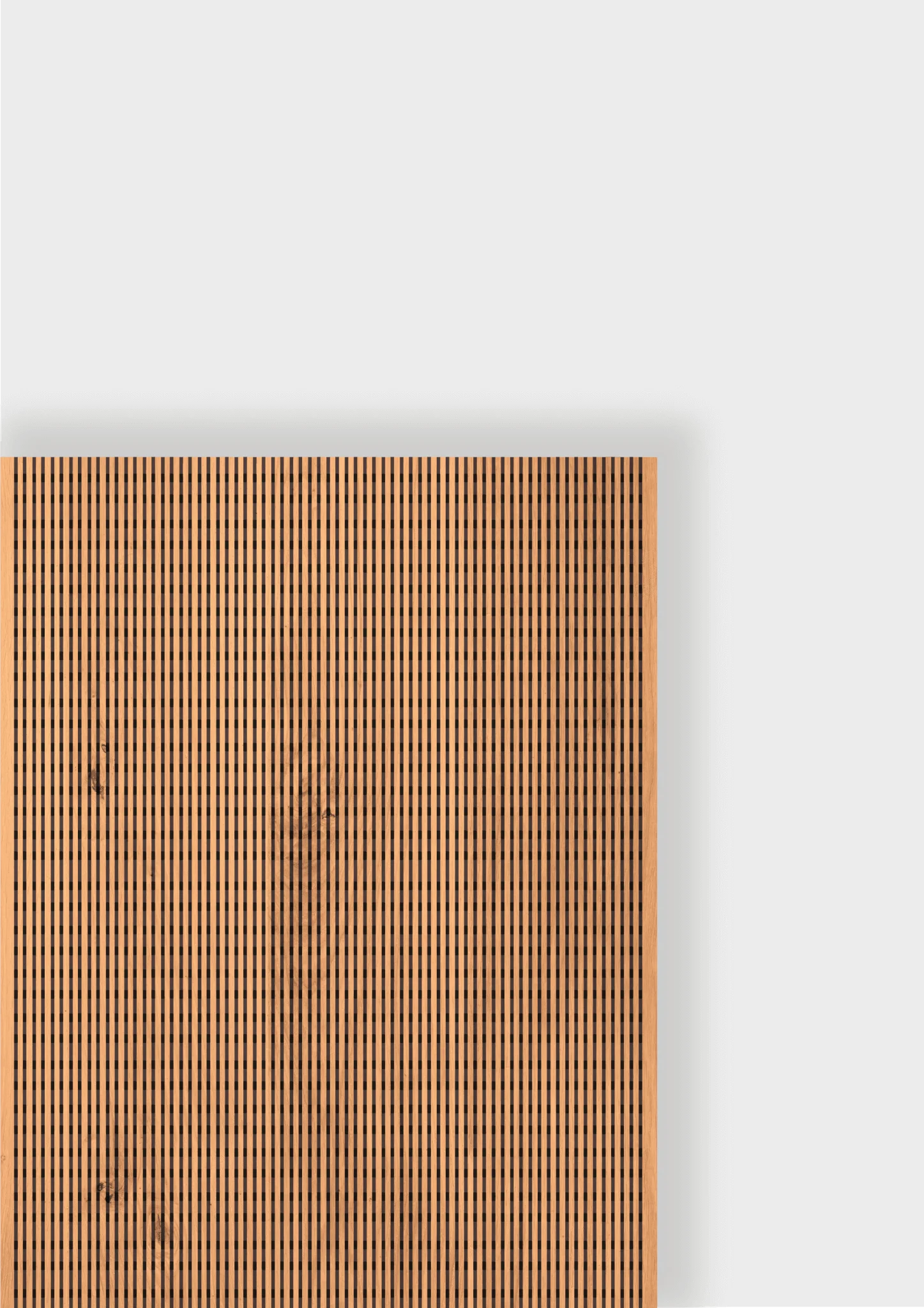

AK104-113 Wooden Acoustic Panel

Usage Type: Wall Ceiling

Brand: AKÇEwood

Product Type: Absorption Panels

Material: 18 mm MDF Laminate / Coated

Surface Feature: Slotted

Slot Gap Distance: 4 mm

Slot Depth: 6 mm

Slot Width: 4 mm

Product Description

Our AKÇEwood brand absorption panels are perforated and identified with the codes AKÇE104-113. The NRC value of the Acoustic Wooden Panels ranges from 0.92 to 0.94. Our product is made from 18mm MDF Lam / Coated material, designed to prevent variable frequency sound waves in the existing space from hitting the wall surface and causing resonance, allowing for clear audibility of sound. The front surface of the panel features slot lines with a solid distance of 4 mm, a line depth of 6 mm, and a line width of 4 mm. The back surface of the panel contains an average of 8000 perforations per square meter. The hole diameter ranges from 6/8 mm with a staggered arrangement of 16x16 mm from center to center. The back surface is covered with 0.2 mm thick imported acoustic fabric, creating sound absorption chambers. The perforation rate varies based on hole diameters and must meet the total volume of sound absorption chambers to achieve the NRC value. For installation, 40x40x2 mm box profiles are used to create a supportive framework on the wall. Wooden frames are mounted on the framework using a level and string. Mineral wool with a density of 50 kg/m3 is placed between the wooden frames. The panels can be installed using lamp, nailed, or adhesive systems.

Technical Specifications

Brand: AKÇEwood
Product Type: Absorption Panels
Material: 18 mm MDF Laminate / Coated
Surface Feature: Slotted
Slot Gap Distance: 4 mm
Slot Depth: 6 mm
Slot Width: 4 mm
Perforation Count: 8000 pcs/m²
Hole Diameter: 6/8 mm
Perforation Ratio: Ø6 : %22,00/m², Ø8 : %39,20/m²
Back Surface: Staggered, Acoustic Fabric Coated (0.2 mm thickness
NRC Değeri: 0,92-0,94
Installation Method: Clip and Nail System, Adhesive
Framework Installation: L corner profile is mounted, main carriers are suspended
Ceiling Partitioning: Rectangles of 600x1200 mm are divided into squares of 600x600 mm, panels are placed
Mounting Profile: 40x40x2 mm Box Profile
Carrier Construction: Vertically or Horizontally at 600mm intervals
Wooden Framework: 3600 mm T15/T24 main carriers

Frequently Asked Questions

What are the advantages of acoustic panels?

Acoustic panels enhance sound insulation, improve the overall sound quality of a space, reduce echoes, and control noise. They also provide a decorative and aesthetic appearance, blending into the design of a space with various color and pattern options.

How is an acoustic panel installed?

Acoustic panels are typically mounted on walls or ceilings using screws or adhesives. The mounting method can vary depending on the product and the needs of the space. Seeking professional assistance can make the installation process more effective and accurate.

How does acoustic panel affect sound insulation?

Acoustic panels enhance sound insulation by absorbing and diffusing sound waves. When sound waves are absorbed on the panel surface, the reverberation time decreases, effectively controlling noise and echo in the space, resulting in improved sound quality.

How is the maintenance of acoustic panels done

Generally, the maintenance of acoustic panels is quite simple. It may be sufficient to regularly clean the accumulated dust and dirt on the surface by gently wiping it with a damp cloth. Cleaning according to the instructions provided by the manufacturer will help ensure the longevity of the panels.

How is the sound absorption performance of acoustic panels measured?

The sound absorption performance of acoustic panels is typically measured using the Noise Reduction Coefficient (NRC) value. NRC is a numerical value between 0 and 1, and the higher the value, the more effective the panels are. Panels with a high NRC value exhibit better sound absorption performance.
