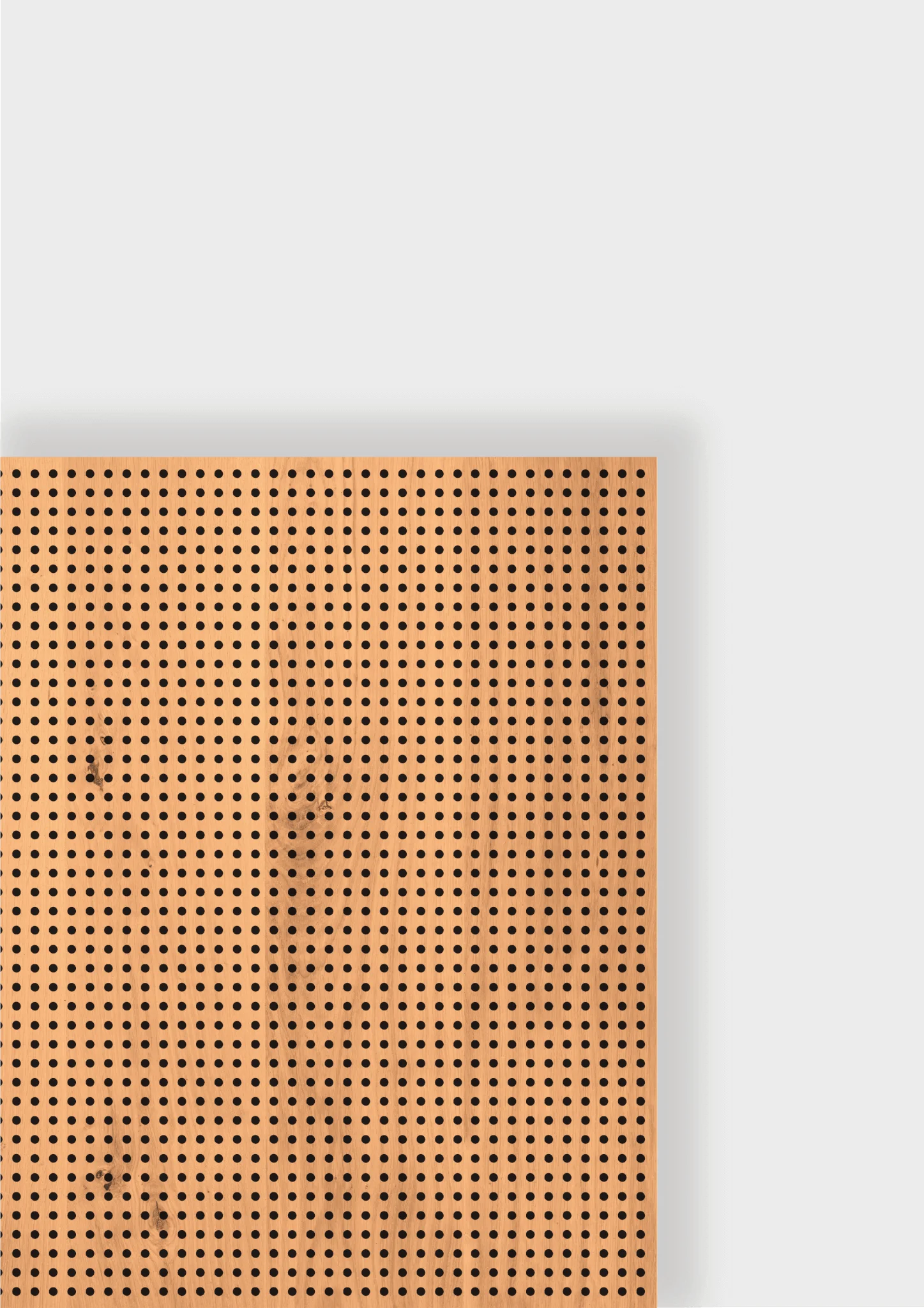

AK103 Wooden Acoustic Panel

AK103 Wooden Acoustic Panel

Product Code: AK103

Usage Type
Wall Ceiling
Brand AKÇEwood
Product Type Absorption Panels
Material 18 mm MDF Laminate / Coated
NRC Value of Panels 0,89 - 0,91
Perforation Type Perforated Holes
Number of Holes Average 2000 pcs/m2
View All Specs
Request a Quote WhatsApp Support

Product Description

Our AKÇEwood brand absorption panels are perforated and identified with the code AKÇE103. The NRC value of the Acoustic Wooden Panels ranges from 0.89 to 0.91. Our product is made from 18mm MDF Lam / Coated material, designed to prevent variable frequency sound waves in the existing space from hitting the wall surface and causing resonance, allowing for clear audibility of sound. The panel features an average of 4000 perforations per square meter. The hole diameter ranges from 6/8/10 mm with a straight arrangement of 16×16 mm from center to center. The back surface is covered with 0.2 mm thick imported acoustic fabric, creating sound absorption chambers. The perforation rate varies based on hole diameters and must meet the total volume of sound absorption chambers to achieve the NRC value. For installation, 40x40x2 mm box profiles are used to create a supportive framework on the wall. Wooden frames are mounted on the framework using a level and string. Mineral wool with a density of 50 kg/m3 is placed between the wooden frames. The panels can be installed using lamp, nailed, or adhesive systems.

Technical Specifications

Brand AKÇEwood
Product Type Absorption Panels
Material 18 mm MDF Laminate / Coated
NRC Value of Panels 0,89 - 0,91
Perforation Type Perforated Holes
Number of Holes Average 2000 pcs/m2
Hole Diameter Range 32x16 mm (Center-to-center)
Hole Diameters 6 mm, 8 mm, 10 mm
Back Surface Coating 0.2 mm Thick Acoustic Fabric Coated
Perforation Ratios Ø6: 5.51%, Ø8: 9.80%, Ø10: 15.32%
Mounting Profile 40x40x2 mm Box Profile
Mounting Method Fixed to Create Supportive Structure
Taşıyıcı Konstrüksiyon Vertically or Horizontally at 600mm intervals
Wooden Framework 3600 mm T15/T24 main carriers
Mounting Materials Clips, Nail System, Omega Connection Profiles
Mounting Density Vertically or Horizontally at 600mm intervals
Sound Absorption Cells Wooden Frameworks, Rockwool Insulation
Installation Method Clip and Nail System, Adhesive
Framework Installation L corner profile is mounted, main carriers are suspended
Tavan Bölümleme Rectangles of 600x1200 mm are divided into squares of 600x600 mm, panels are placed
FAQ

Frequently Asked Questions

What are the advantages of acoustic panels?

Acoustic panels enhance sound insulation, improve the overall sound quality of a space, reduce echoes, and control noise. They also provide a decorative and aesthetic appearance, blending into the design of a space with various color and pattern options.

How is an acoustic panel installed?

Acoustic panels are typically mounted on walls or ceilings using screws or adhesives. The mounting method can vary depending on the product and the needs of the space. Seeking professional assistance can make the installation process more effective and accurate.

How does acoustic panel affect sound insulation?

Acoustic panels enhance sound insulation by absorbing and diffusing sound waves. When sound waves are absorbed on the panel surface, the reverberation time decreases, effectively controlling noise and echo in the space, resulting in improved sound quality.

How is the maintenance of acoustic panels done

Generally, the maintenance of acoustic panels is quite simple. It may be sufficient to regularly clean the accumulated dust and dirt on the surface by gently wiping it with a damp cloth. Cleaning according to the instructions provided by the manufacturer will help ensure the longevity of the panels.

How is the sound absorption performance of acoustic panels measured?

The sound absorption performance of acoustic panels is typically measured using the Noise Reduction Coefficient (NRC) value. NRC is a numerical value between 0 and 1, and the higher the value, the more effective the panels are. Panels with a high NRC value exhibit better sound absorption performance.

Akustik panellerin ses yutma performansı nasıl ölçülür?

Akustik panellerin ses yutma performansı, genellikle NRC (Noise Reduction Coefficient) değeri ile ölçülür. NRC, 0 ile 1 arasında bir değer alır ve ne kadar fazla olursa, panellerin o kadar etkili olduğunu gösterir. Yüksek NRC değerine sahip paneller, daha iyi ses yutma performansı sergiler.

Özel ölçü ve renk seçenekleri mevcut mu?

Evet, Akçe Akustik olarak mimari projenin gerekliliklerine göre özel ölçülerde üretim yapabiliyoruz. Kumaş panellerde zengin kartela seçeneklerimiz, ahşap panellerde ise farklı kaplama ve delik/derz seçeneklerimiz mevcuttur.

NRC değeri nedir ve panel seçiminde neden önemlidir?

NRC (Noise Reduction Coefficient - Gürültü Azaltma Katsayısı), bir malzemenin sesi ne kadar iyi yuttuğunu belirten 0 ile 1 arasındaki değerdir. 1'e yakın değerler, panelin sesi daha yüksek oranda emdiğini gösterir. Akçe Akustik ürünleri, mekanın ihtiyacına göre optimize edilmiş yüksek NRC değerlerine sahiptir.
